三軸自動點塗膠機

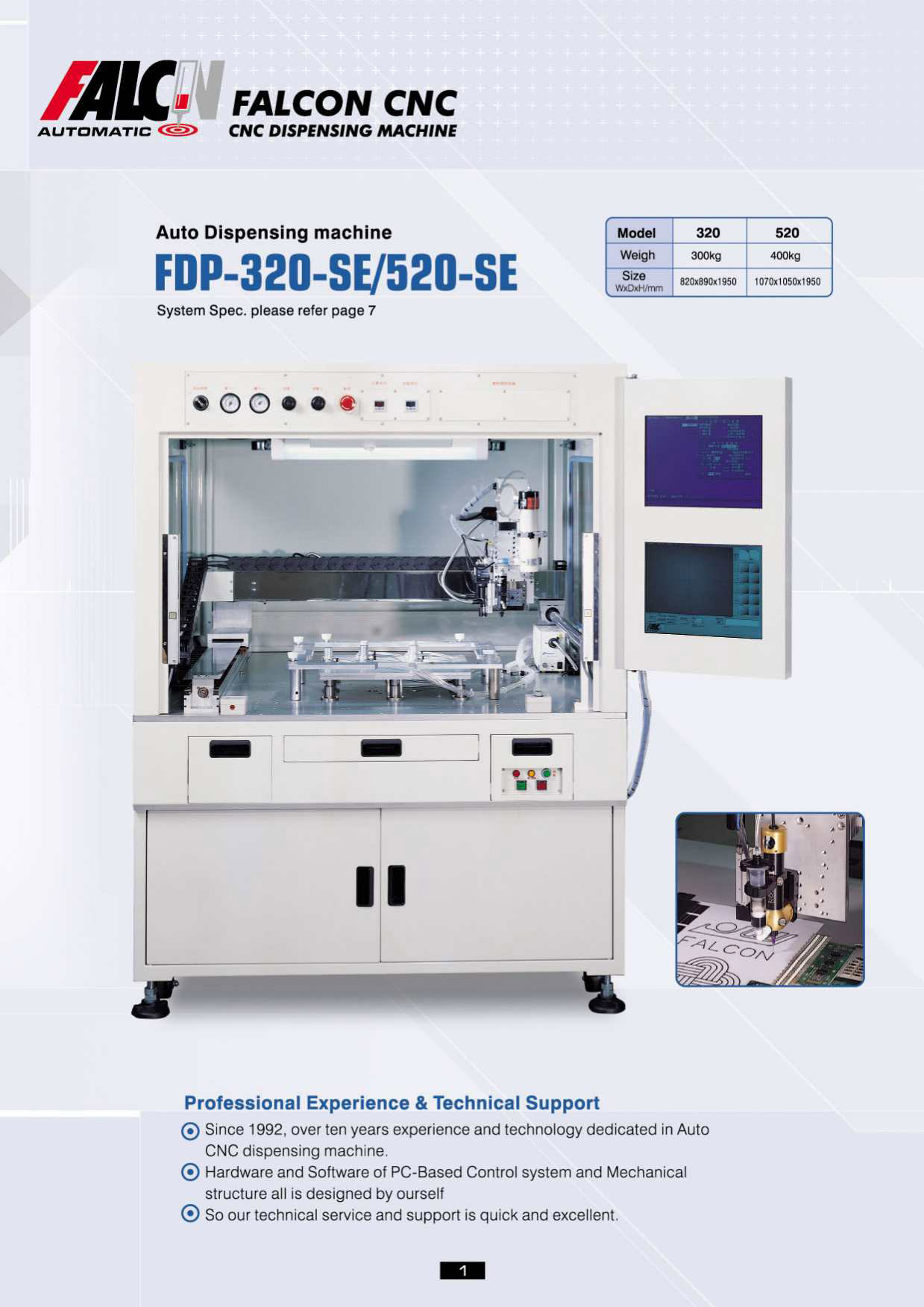

FDP-320-SE/520-SE

Professional Experience & Technical Support

  • Since 1992, over ten years experience and technology dedicated in Auto CNC dispensing machine.
  • Hardware and Software of PC-Based Control system and Mechanical structure all is designed by ourself.
  • So our technical service and support is quick and excellent.
Detail
Download



Dispense Area
FDP-320/520 X -Y - Z strok 320x320x50mm/520x520x50mm

Mechanical

  1. 1. Drive Motor : X-Y-Z: Made in Japan 400W AC Servo motor
  2. 2. Drive Structure : Linear Guide +Ball Screw
  3. 3. Axis Speed : X-Y: Axis speed:300mm/sec Z: Axis speed:300mm/sec
  4. 4. Resolution : 0.01mm
  5. 5. Repeat Precision : ±0.025mm

Control Sys.

  1. 1. Controller : Industrial PC with 2.5G Celeron CPU & 15” LCD color monitor. Interactive POP-UP MENU easy to learn & use
  2. 2. X-Y-Z data/program : 5000 points
  3. 3. Qty of programs : 1000 programs
  4. 4. Patterns available : Point, Line, Arc, Circle, Square or Circular Area fill-up
  5. 5. Program method: Teaching by Joystick or Editing by key board or DXF file.
  6. 6. 支援Auto CAD.DXF檔讀取,點/塗膠路徑設定速度，3分鐘搞定(點,線,弧,圓,變形曲線)。

Dispensing

  1. 1. Dispensing rate(dots/hr) : 11500dph。
  2. 2. Line/Arc speed : 250/150mm/sec。
  3. 3. Dispensing method :
    A. Syringe drived by air(suitable for small quantity easy solidified glue) Applied on : Silver glue, Red glue, UV glue, SMD LED ( Epoxy ) Conductive glue for cell phone ,Tin cream, PCB Solder glue.
    B. Air On/Off Valve(suitable for large quantity nonstick & easy dripped glue) Applied on COB(Epoxy), LCD COG(Silicon) Instantaneous glue,UV glue.
    C. Lead screw valve(suitable for very sticky glue, high precision) Applied on : IC encapsulate process like COB, Lead frame for Silver glue, Red glue, Tin cream, BGA DAM & FILL.
    D. Jet valve, Spray valve, etc…….

Facility Requirement

  1. 1. Power : 1ψ , 50~60Hz , 110V/220V, 1200W
  2. 2. Pneumatic : 3.5~7kg/cm2(50~100 psi)


For Model 20-SE/520-SE│320-SC/520-SC│320-S/520-S│320-SEL/520-SEL│320-SE-CV/520-SE-CV。
Option
  • Liquid Dispenser, Air droved valve, Lead screw valve.
  • Temperature, controller, Heat plate or Vacuum Tray.
  • Fixture of 2~4 tips(pitch between each other is X-Y-z adjustable).
  • Hi Sensor, it can detect the difference of, high of working surface.
  • CCD module, increase efficiency of teaching &precision.
  • Spare I/O ports that can link with conveyer or PLC.
  • ODM of Tray & Fixture.
  • B-glue dispensing module if you need DAM & FILL process.
  • Flip flop module of A-B Tray, Saving time of Loading & unloading.
