Dispensing Machine

Products

三軸自動點塗膠機

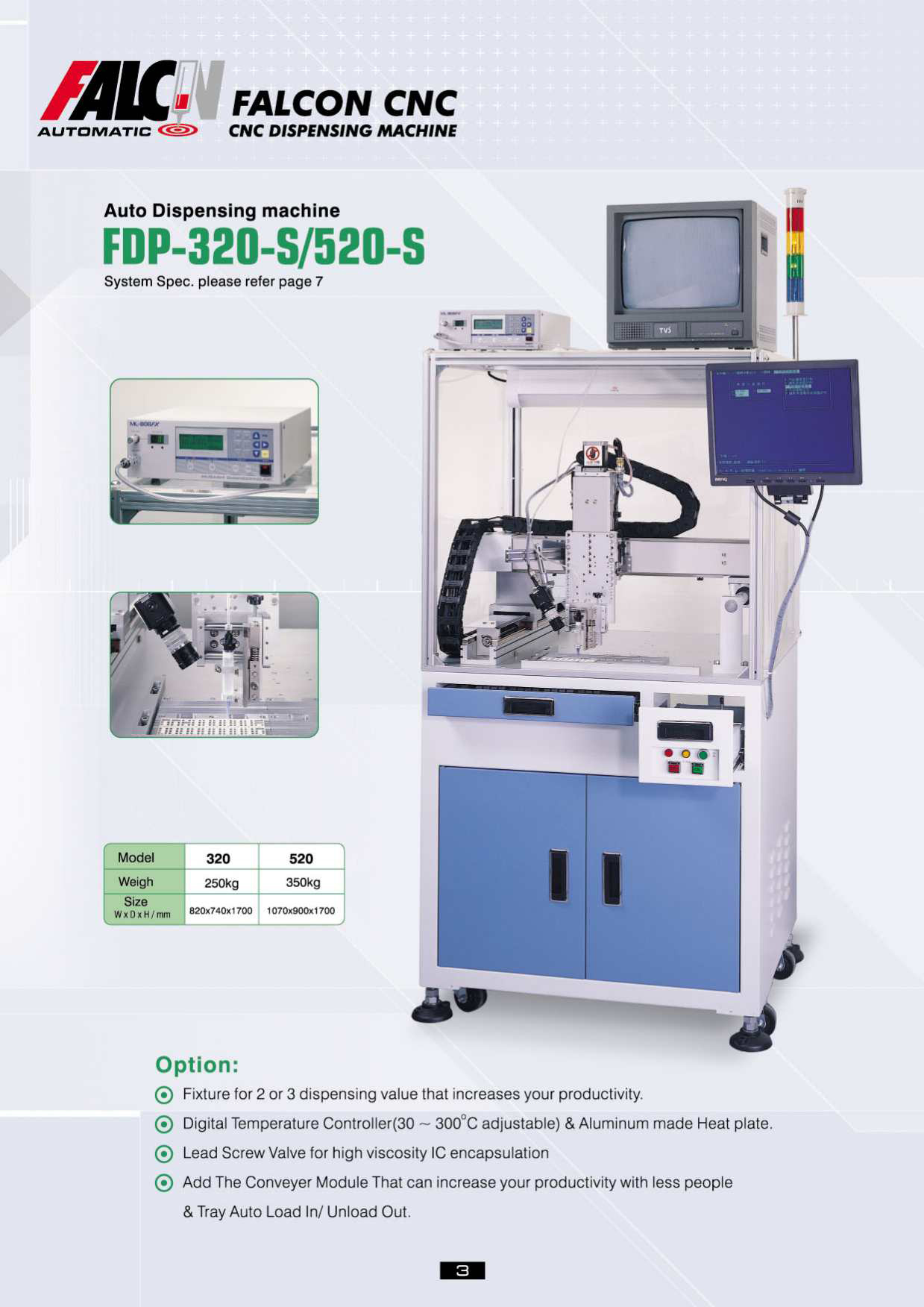

FDP-320-S/520-S

Characteristic

  • Fixture for 2 or 3 dispensing value that increases your productivity.
  • Digital Temperature Controller(30~300。C adjustable) & Aluminum made Heat plate.
  • 可做3D立體曲面，不同平面點塗膠作業。
  • 有十數年業界實績，交機後立即上線〈控制軟體機構設計，自行研發，售後服務有保障〉。
  • 可搭配Lead Screw Valve作BGA之精密點封膠。
  • 可搭配CNV自動進出料設備，節省人力。
Detail
Download



Dispense Area
FDP-320/520 X -Y - Z strok 320x320x50mm/520x520x50mm

Mechanical

  1. 1. Drive Motor : X-Y-Z: Made in Japan 400W AC Servo motor
  2. 2. Drive Structure : Linear Guide +Ball Screw
  3. 3. Axis Speed : X-Y: Axis speed:300mm/sec Z: Axis speed:300mm/sec
  4. 4. Resolution : 0.01mm
  5. 5. Repeat Precision : ±0.025mm

Control Sys.

  1. 1. Controller : Industrial PC with 2.5G Celeron CPU & 15” LCD color monitor. Interactive POP-UP MENU easy to learn & use
  2. 2. X-Y-Z data/program : 1000 points
  3. 3. Qty of programs : 1200 programs
  4. 4. patterns available : Point, Line, Arc, Circle, Square or Circular Area fill-up
  5. 5. Program method: Teaching by Joystick or Editing by key board or DXF file.
  6. 6. 可讀取Auto CAD.DXF檔，塗膠路徑設定快速，3分鐘搞定(點,線,弧,圓,變形曲線)。

Dispensing

  1. 1. Dispensing rate(dots/hr) : 11500dph。
  2. 2. Line/Arc speed : 250/150mm/sec。
  3. 3. Dispensing method
    A. Syringe drived by air(suitable for small quantity easy solidified glue) Applied on : Silver glue, Red glue, UV glue, SMD LED ( Epoxy ) Conductive glue for cell phone ,Tin cream, PCB Solder glue.
    B. Air On/Off Valve(suitable for large quantity nonstick & easy dripped glue) Applied on COB(Epoxy), LCD COG(Silicon) Instantaneous glue,UV glue.
    C. Lead screw valve(suitable for very sticky glue, high precision) Applied on : IC encapsulate process like COB, Lead frame for Silver glue, Red glue, Tin cream, BGA DAM & FILL.
    D. Jet valve, Spray valve, etc…

Facility Requirement

  1. 1. Power : 1ψ , 50~60Hz , 110V/220V, 1200W
  2. 2. Pneumatic : 3.5~7kg/cm2(50~100 psi)
